Distribution Pedestals
Universal 8-inch Distribution Pedestal
Overview

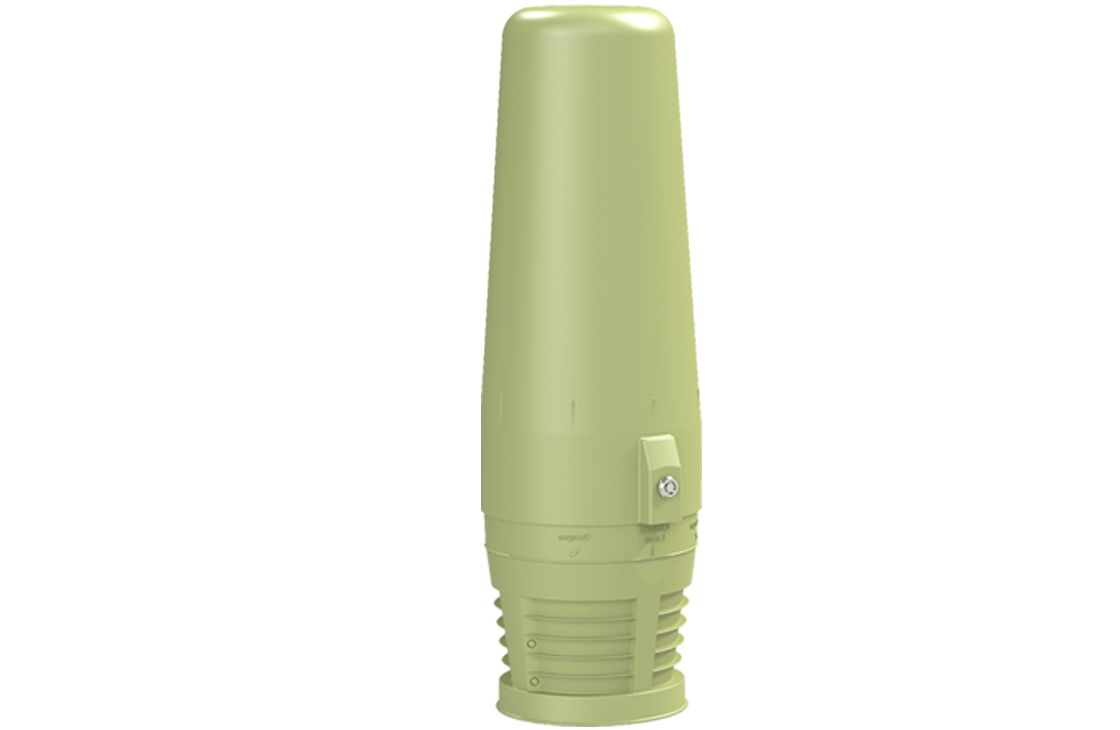

The Plugin Optics 8-inch Universal Distribution Pedestal provides a protective enclosure for, outside plant (OSP), above ground splices and terminations of buried feeder fiber and customer drop fiber cables. Used for both Greenfield and Brownfield applications at mid-span or stub-in points. Made with non-metallic, non-conductive, injection molded plastic, Plugin Optics 8-inch Universal Distribution Pedestals provide a rugged and durable enclosure to protect against weather, dirt, flooding, fire and impact for OSP above-grade applications.
Features
- Universal Design Supports Many, Industry Standard, Mounting Stakes, Panels, And Splicing Accessories
- Auto-Locking Two-Piece Configuration, Base & Top
- Wide 11” Opening, Tapered To 8.4” At The Top
- 360-Degree Access Where You Need It
- Two Stake Mounting Locations, 180 Deg. Apart
Applications
- Residential, Commercial, Industrial
- Midspan Splice Points
- Distribution Points
- Fiber-To-The-Home, FTTH
- Fiber-To-The-Tower, FTTT
| Parameter | Unit | Specification |
|---|---|---|
| TOTAL HEIGHT | in (mm) | 36.3 (920.8) |
| BASE HEIGHT | in (mm) | 14.8 (374.4) |
| TOP HEIGHT | in (mm) | 25.9 (656.6) |
| TOTAL HEIGHT (INSTALLED) | in (mm) | 28 (711.2) |
| WIDTH (MAX. DIA.) | in (mm) | 13.9 (353.06) |
| WITDH (MIN. BASE) | in (mm) | 11.25 (285.75) |
| OPERATING TEMPERATURE | °C | -40 ~ +85 |
| STORAGE TEMPERATURE | °C | -40 ~ +85 |
| Part Number | Description |
|---|---|
| PLO-U-PED-812 | 8-INCH DISTRIBUTION PEDESTAL, BASE & TOP |

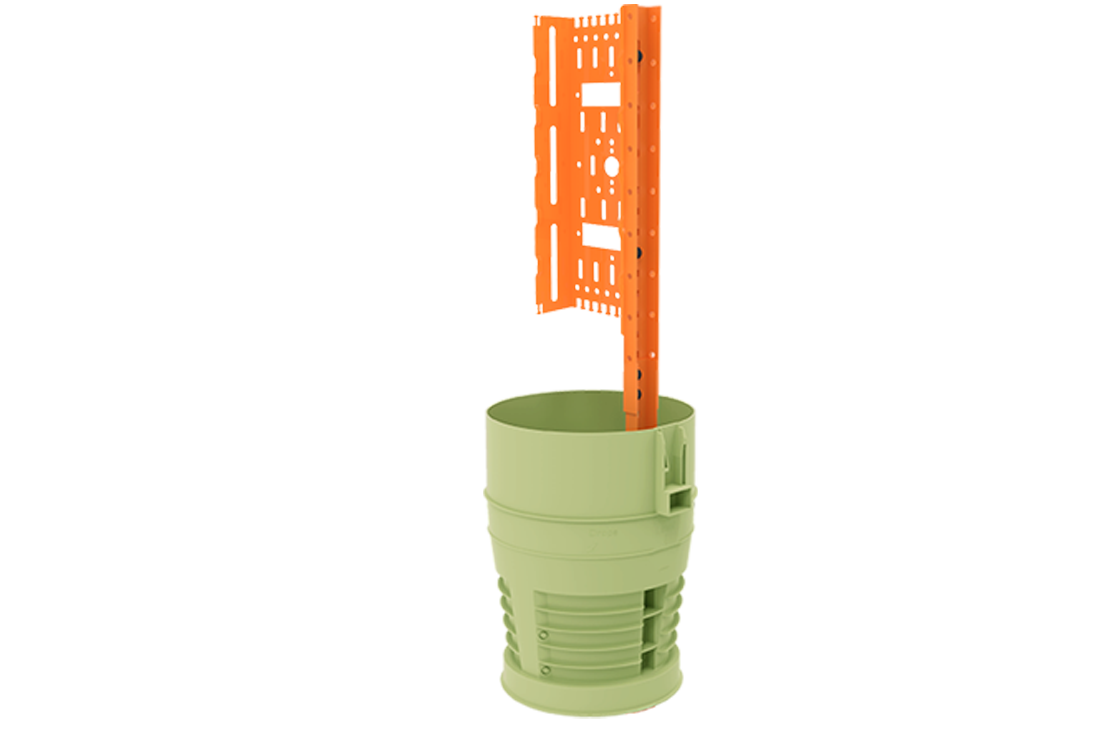

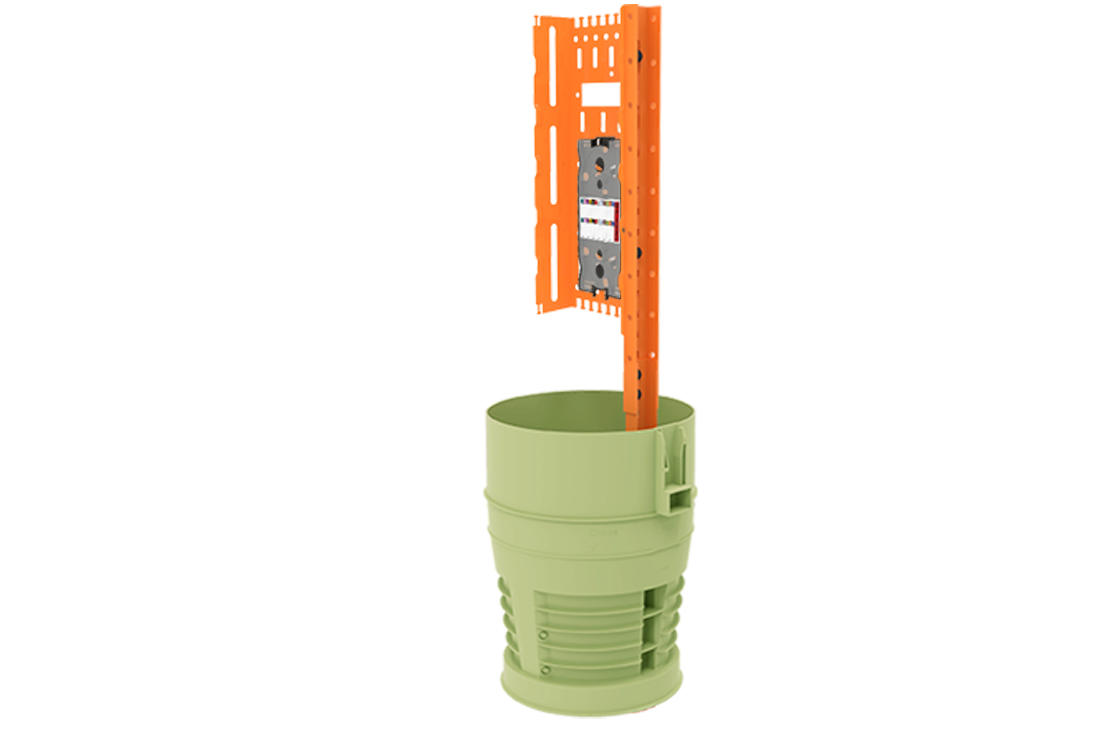

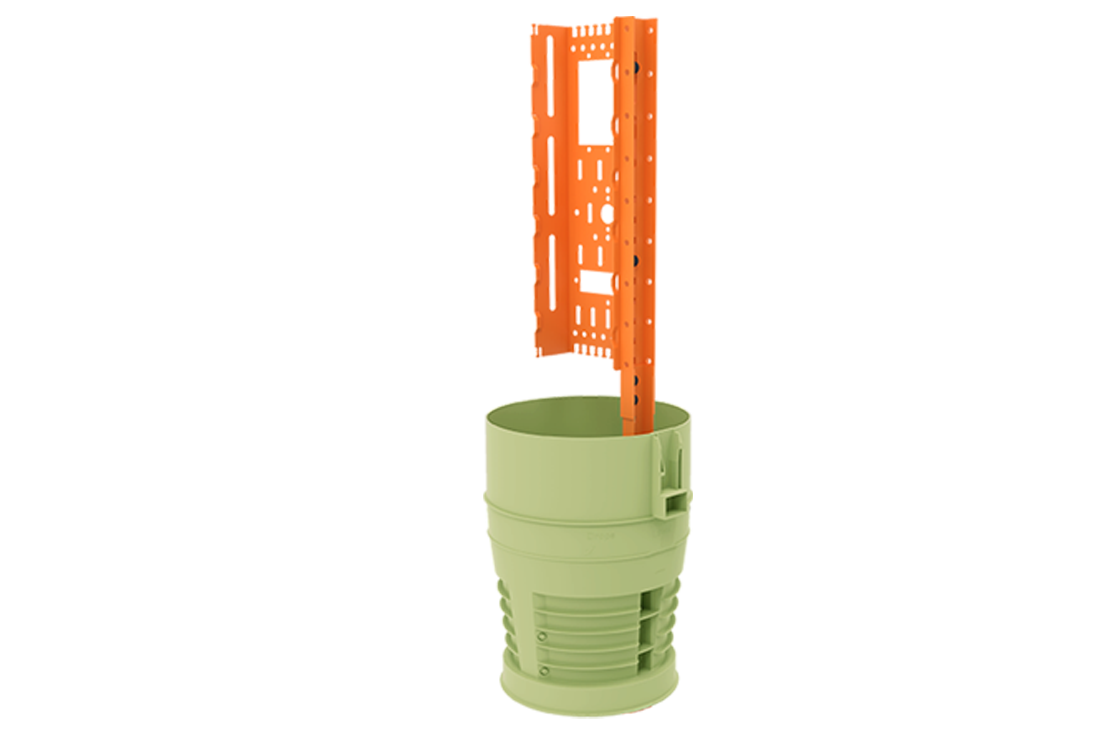

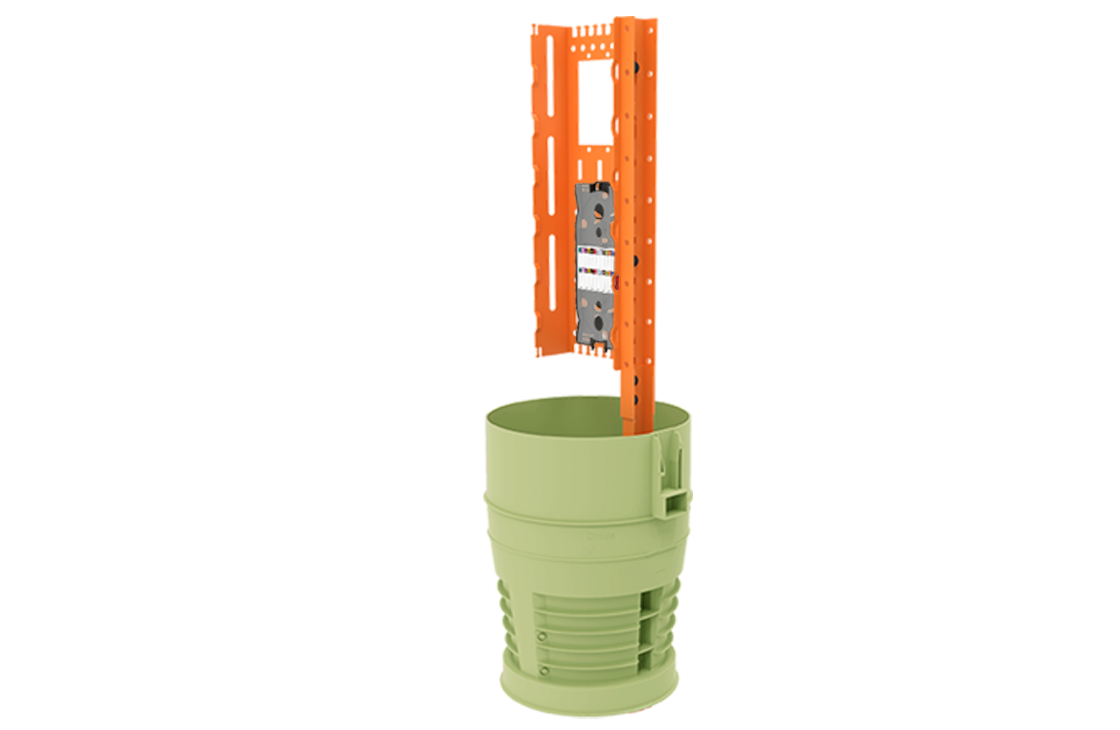

| PLO-TLP-EPED-SGP0-0 | 8-INCH PEDESTAL, STAKE, GRD BRACKET, AND 15-INCH UMP PANEL |
| PLO-TLP-EPED-SGP0-1 | 8-INCH PEDESTAL, STAKE, GRD BRACKET, AND 17-INCH UMP PANEL |

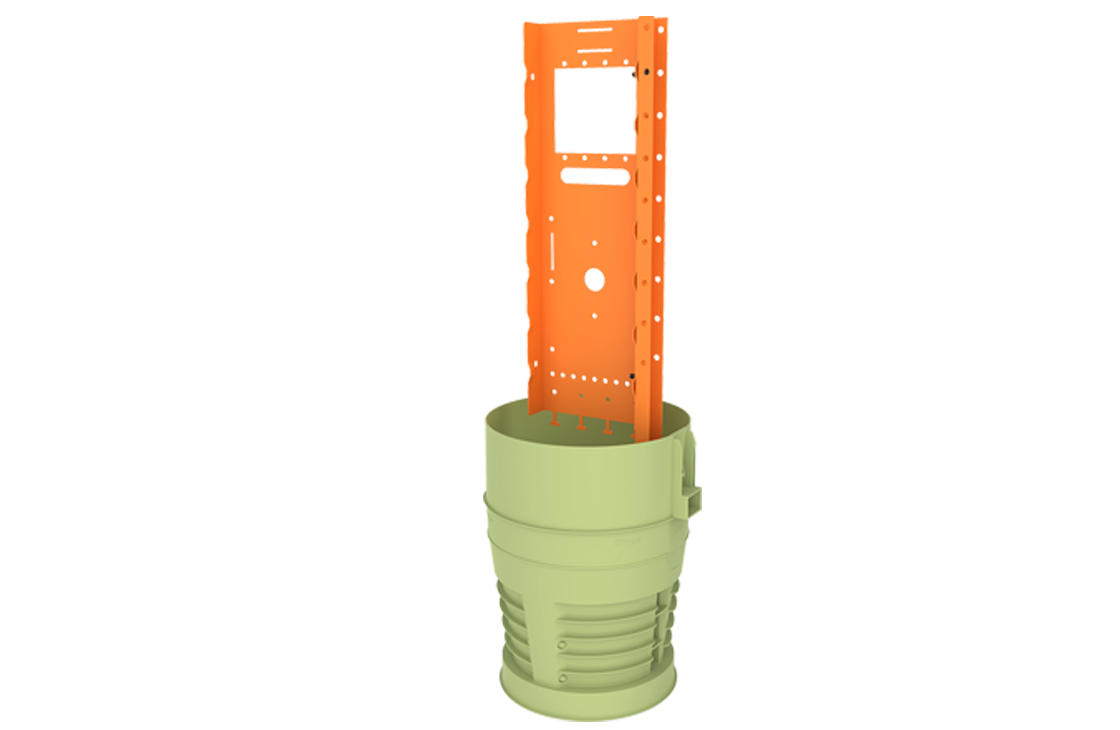

| PLO-TLP-EPED-SGP0-2 | 8-INCH PEDESTAL, STAKE, GRD BRACKET, AND HD BACKBOARD |
Universal 10-inch Distribution Pedestal
Overview

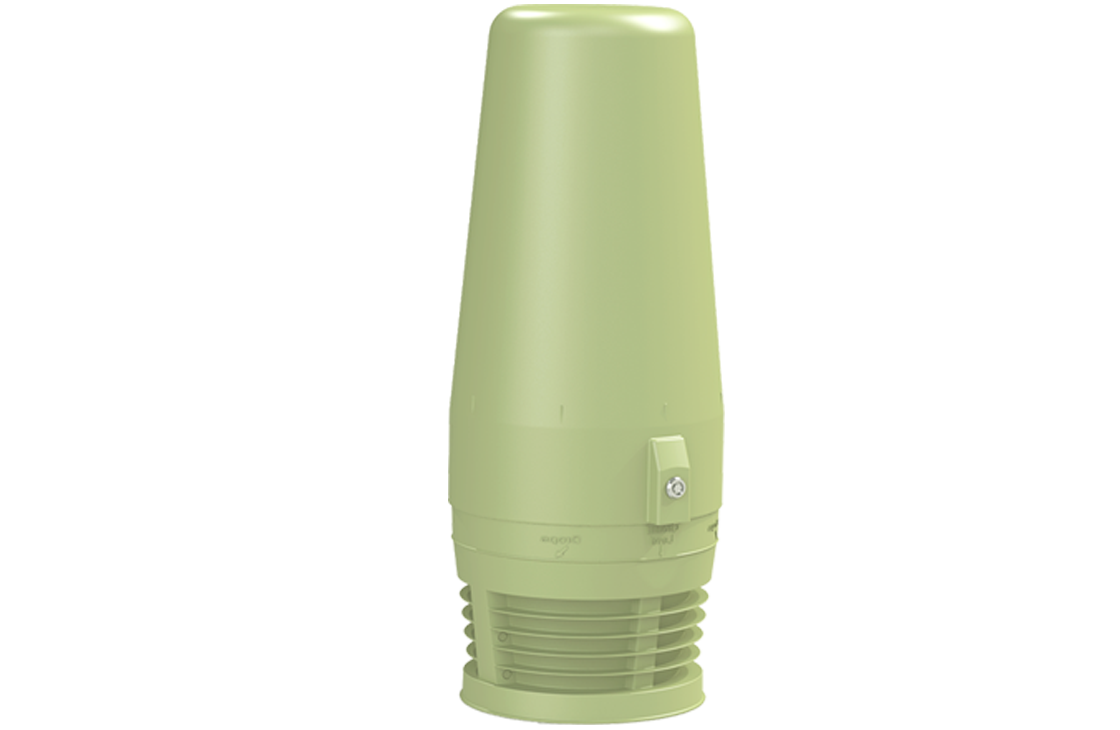

Pedestals provide a protective enclosure for outside plant (OSP), above ground splices and terminations of buried feeder fiber and customer drop fiber cables. Used for both “greenfield” and “brownfield” applications at mid-span, stub-in points, and end points. Made with non-metallic, non-conductive, injection molded plastic, Plugin Optics 10-inch Universal Distribution Pedestals provide a rugged and durable enclosure to protect against weather, dirt, flooding, fire and impact for OSP above-grade applications.
Features
- Universal Design Supports Many, Industry Standard, Mounting Stakes, Panels, And Splicing Accessories
- Auto-Locking Two Piece Configuration, Base & Top
- Wide 14” Opening, Tapered To 10.3” At Top
- 360-Degree Access Where You Need It
- Two Stake Mounting Locations, 180 Deg. Apart
Applications
- Residential, Commercial, Industrial
- Midspan Splice Points
- Distribution Points
- Fiber-To-The-Home, FTTH
- Fiber-To-The-Tower, FTTT
| Parameter | Unit | Specification |
|---|---|---|
| TOTAL HEIGHT | in (mm) | 36.25 (920.75) |
| BASE HEIGHT | in (mm) | 14.25 (361.95) |
| TOP HEIGHT | in (mm) | 25.75 (654.05) |
| TOTAL HEIGHT (INSTALLED) | in (mm) | 28 (711.2) |
| WIDTH (MAX. DIA.) | in (mm) | 13.9 (353.06) |
| WITDH (MIN. BASE) | in (mm) | 11.25 (285.75) |
| OPERATING TEMPERATURE | °C | -40 ~ +85 |
| STORAGE TEMPERATURE | °C | -40 ~ +85 |
| Part Number | Description |
|---|---|

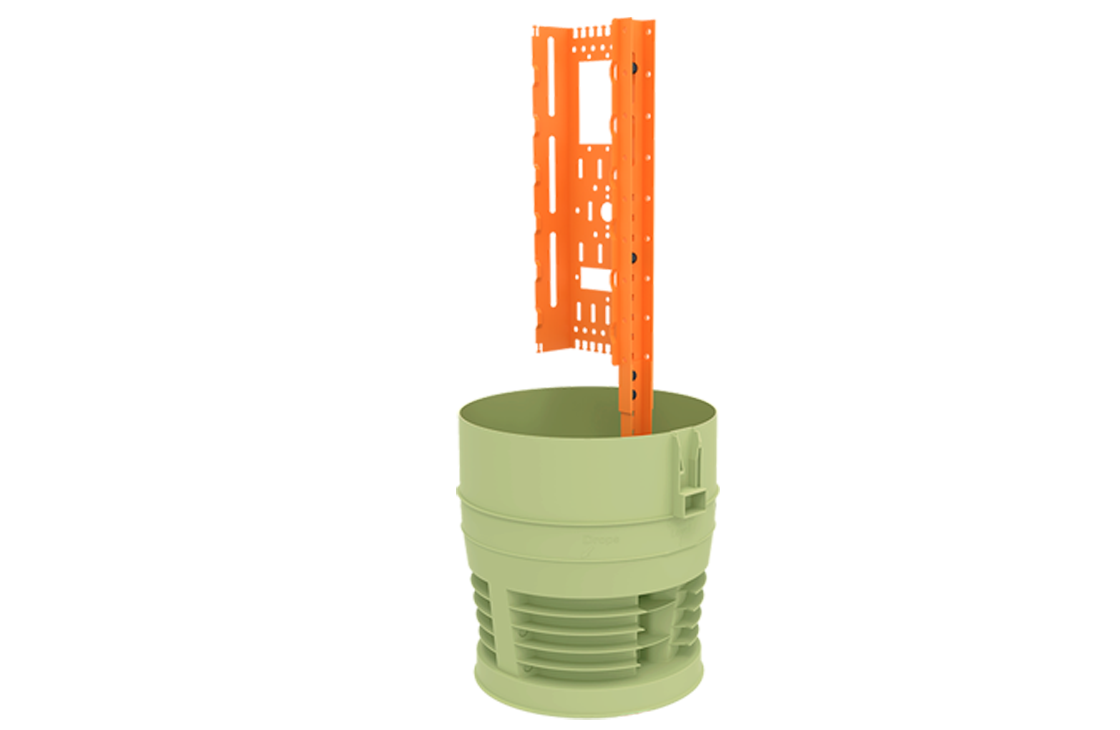

| PLO-U-PED-1014 | 10-INCH DISTRIBUTION PEDESTAL, BASE & TOP |

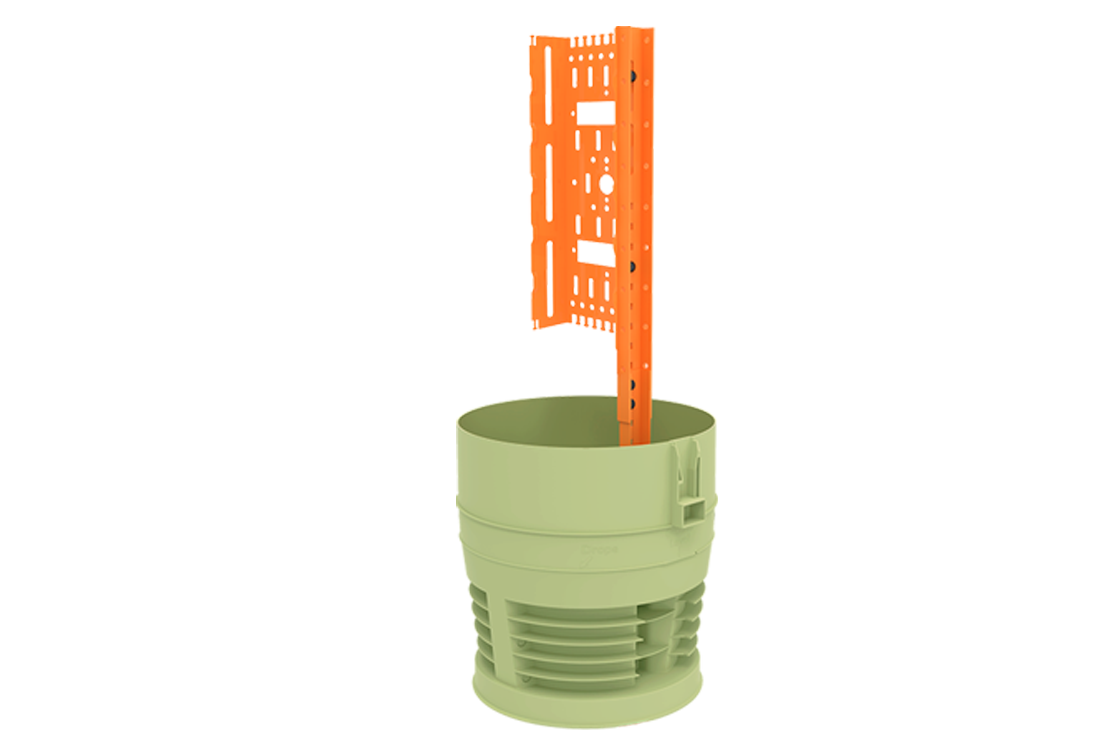

| PLO-TLP-TPED-SGP0-0 | 10-INCH PEDESTAL, STAKE, GRD BRACKET, AND 15-INCH UMP PANEL |
| PLO-TLP-TPED-SGP0-1 | 10-INCH PEDESTAL, STAKE, GRD BRACKET, AND 17-INCH UMP PANEL |

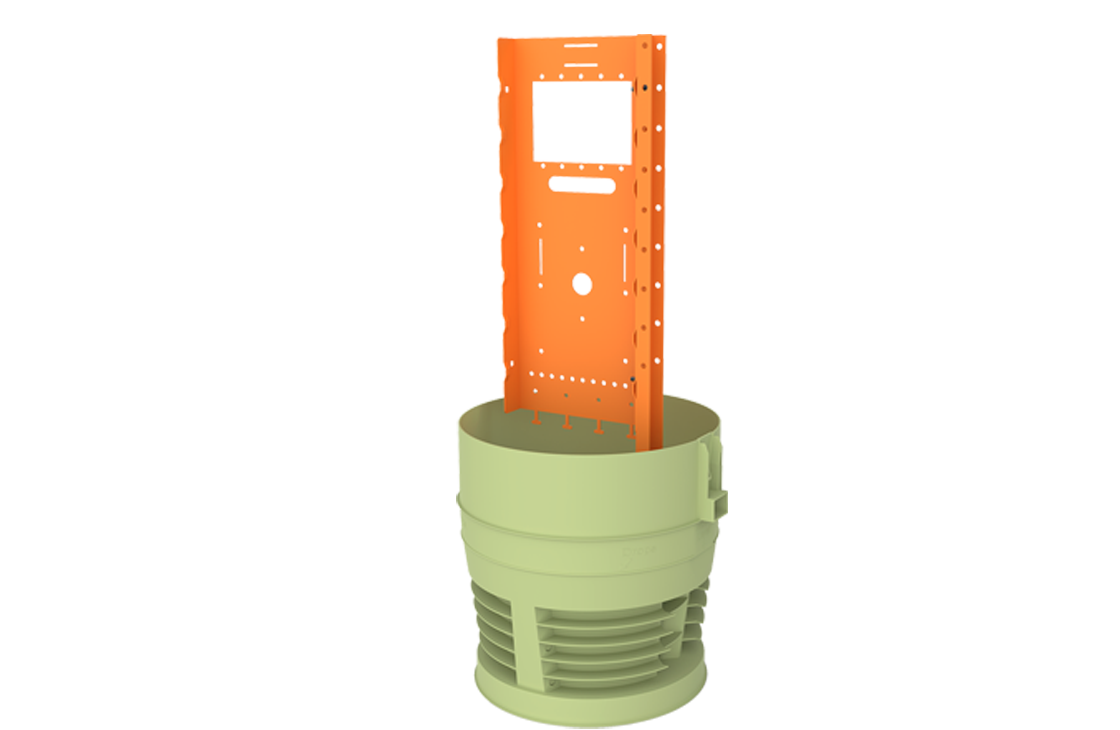

| PLO-TLP-TPED-SGP0-2 | 10-INCH PEDESTAL, STAKE, GRD BRACKET, AND HD BACKBOARD |
12-Inch Distribution Pedestals
Overview

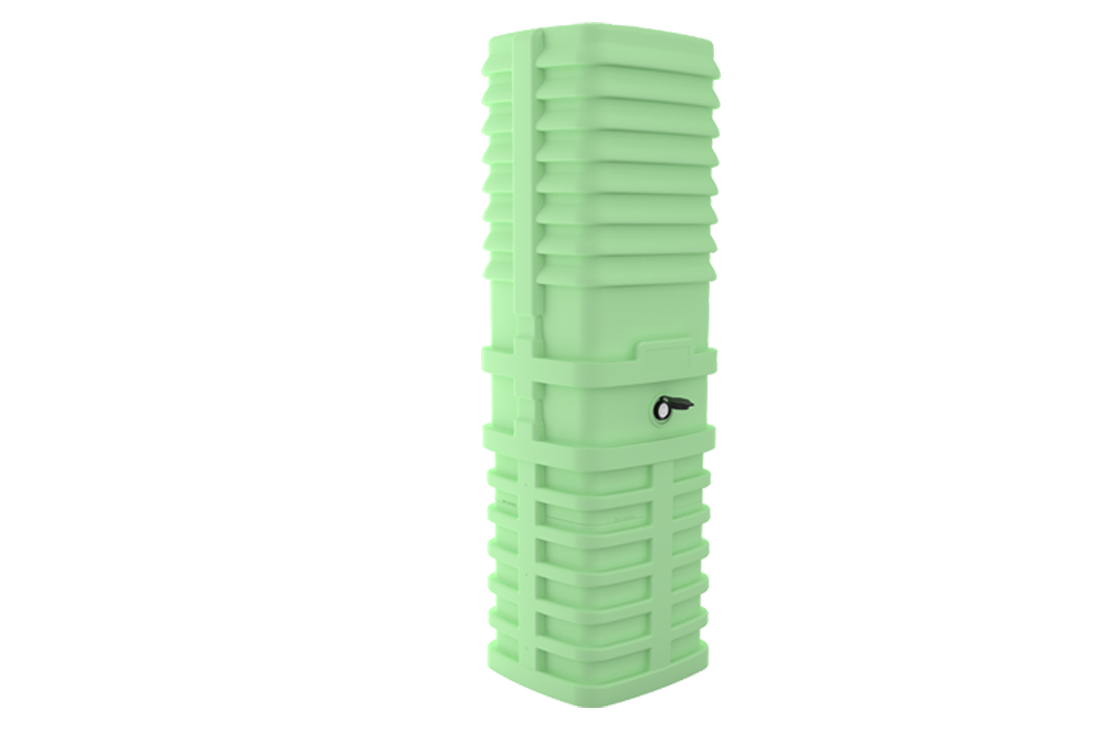

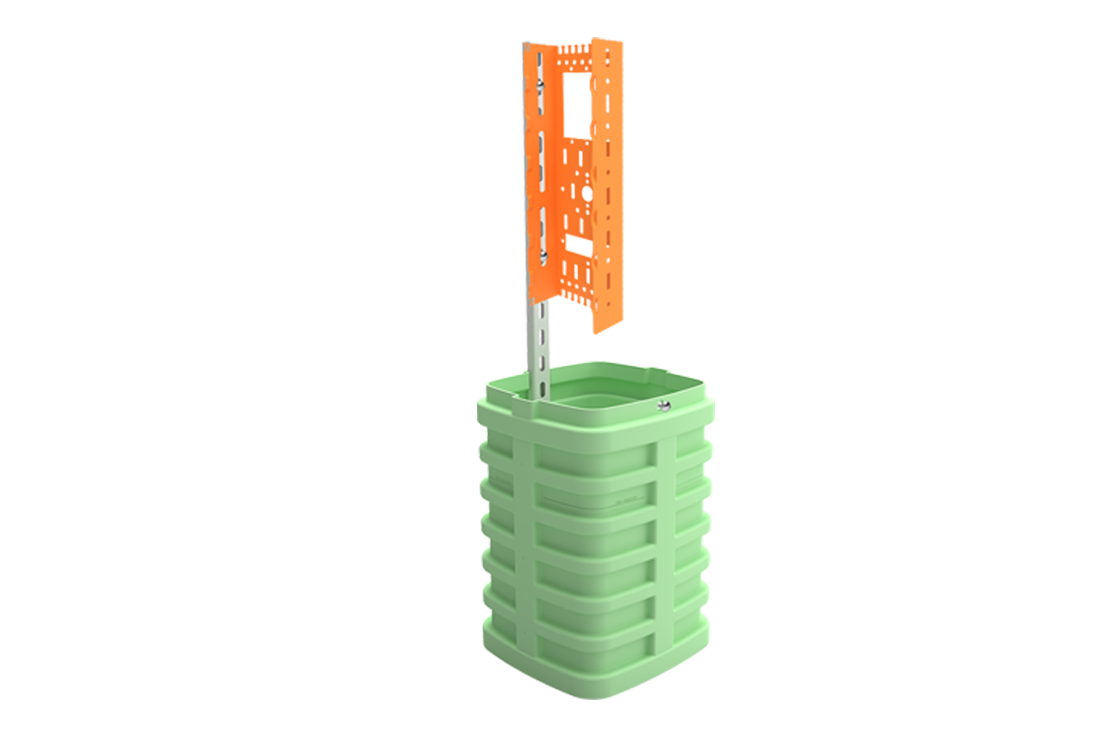

The Plugin Optics Universal 12-Inch Universal Distribution Pedestal provides a protective enclosure for, outside plant (OSP), above ground splices and terminations of buried feeder fiber and customer drop fiber cables. Also available in configurations Ideal for fiber distribution hub (FDH) sites, fiber distribution splitter hub (FDSH) sites, that can also host CWDM and DWDM solutions for OSP capacity projects. Used for both Greenfield and Brownfield applications at mid-span or stub-in points. Made of non-metallic, non-conductive, roto molded HDPE, the 12-Inch Distribution Pedestal provides a rugged and durable enclosure to protect against weather, dirt, flooding, fire, and impact for OSP above-grade applications.
Features
- Universal Design, Supports Industry Standard
Mounting Panels, and Splicing Accessories - 7/16-inch Mechanical Lock
- 12-Inch Square Design
- 3 Mounting Stake Locations
Applications
- Residential, Commercial, Industrial
- Midspan and Distribution Splice Points
- Fiber-To-The-Home, FDH/FDSH
- Fiber-To-The-Tower, FTTT
| Parameter | Unit | Specification |
|---|---|---|
| TOTAL HEIGHT | in (mm) | 47 (1193.8) |
| BASE HEIGHT | in (mm) | 20 (508) |
| TOP HEIGHT | in (mm) | 30 (762) |
| TOTAL HEIGHT (INSTALLED) | in (mm) | 33 (838.2) |
| WIDTH (MAX.) | in (mm) | 14 (355.6) |
| WITDH (MIN. BASE) | in (mm) | 14 (355.6) |
| OPERATING TEMPERATURE | °C | -40 ~ +85 |
| STORAGE TEMPERATURE | °C | -40 ~ +85 |
| Part Number | Description |
|---|---|
| PLO-U-PED-1214 | 12-INCH DISTRIBUTION PEDESTAL AND MOUNTING POST |

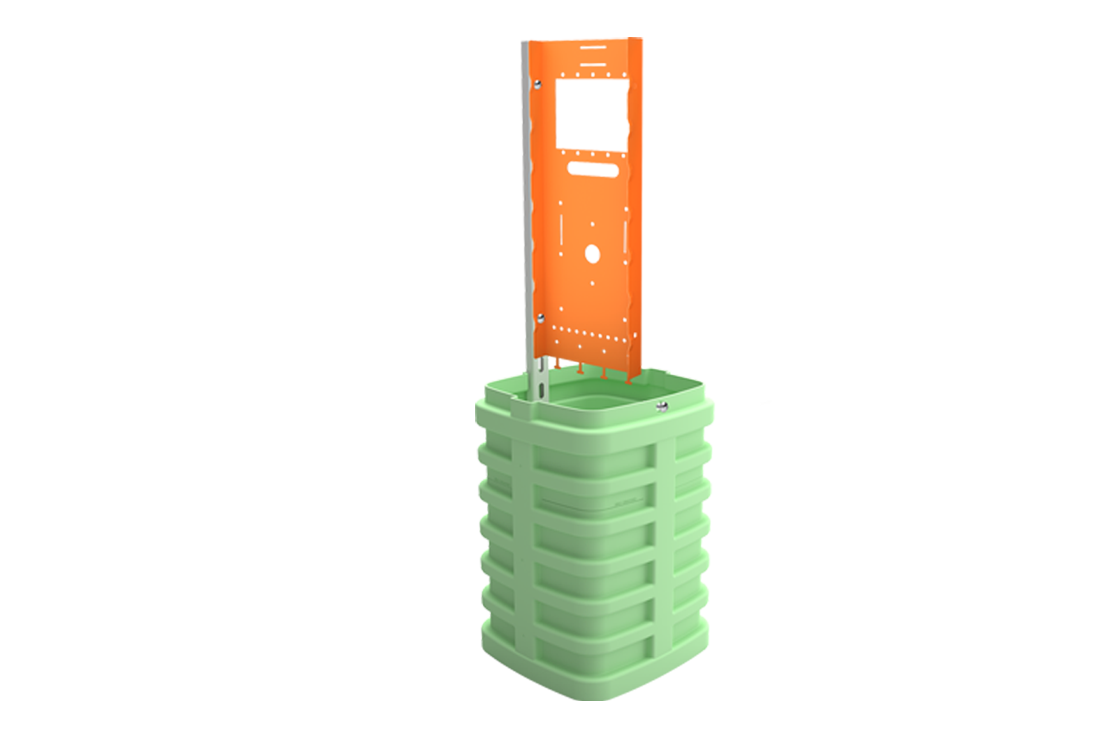

| PLO-F-PED-1214-0 | 12-INCH PEDESTAL KIT, FFDH BACKBOARD, GROUND BRACKET |

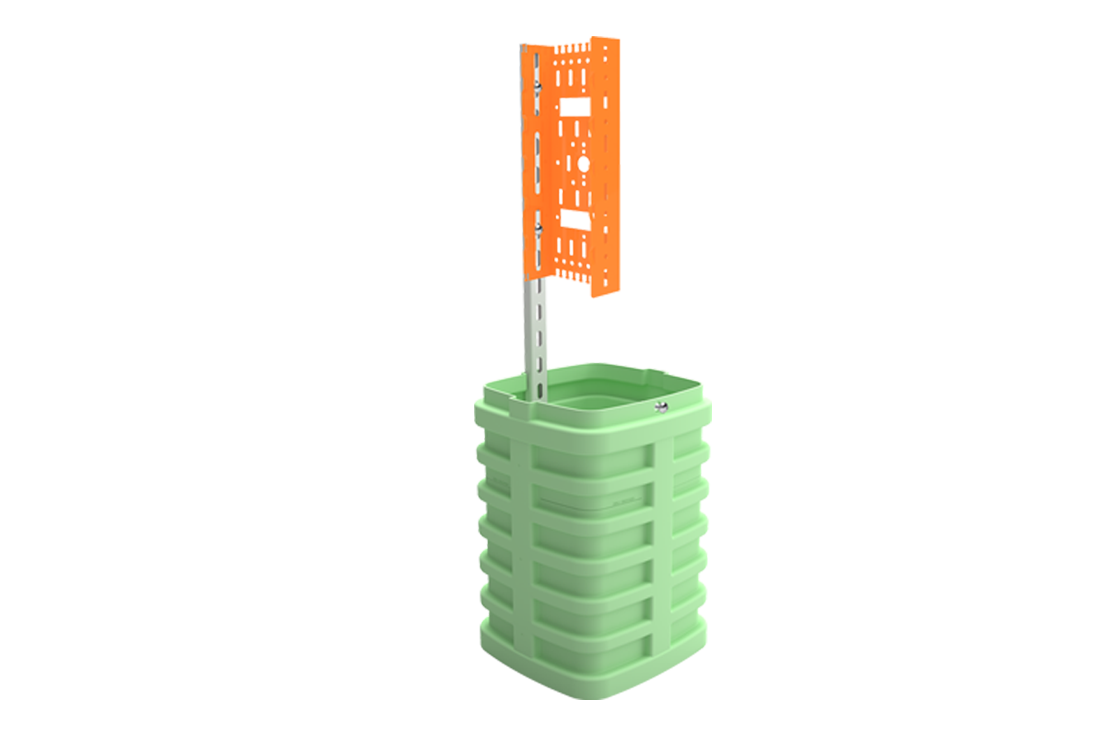

| PLO-F-PED-1214-1 | 12-INCH PEDESTAL KIT, PEDESTAL, UMP-1552, UGB-300-L |
| PLO-F-PED-1214-2 | 12-INCH PEDESTAL KIT, PEDESTAL, UMP-1752, UGB-300-L |
| NOTE: PLUGIN OPTICS OFFERS A FULL LINE OF HARDWARE TO DEPLOY WITH UNIVERSAL DISTRIBUTION PEDESTALS. | |
