Pedestal Hardware & Accessories
Universal Mounting Plates
Overview
The UMP-1552 & UMP-1752 “Universal Mounting Plates” provide excellent, low-cost deployment solutions for fiber network operators. Available in 2 LGX slot and 4 LGX slot versions there is a mounting plate to most fiber applications. The plate attaches easily to pedestal stakes and customer premises wall boards and provides flexibility for splice tray, PLC Splitter, xWDM and Fiber Interconnect placement. The integrated side cleats and strain relief T’s allow technicians to easily tie down and route fiber cables to meet bend radius requirements.
Features
- Durable Aluminum & Steel Mounting Plates
- Integrated Cleats & Strain Relief T’s For Cable Tie Down
- Mounting Side: Universal Bolting Pattern
- Access Side: Long Wide Slots To Allow Tool Access
- Flexible Hole Patterns For Many Applications:
- Two LGX Slot & Four LGX Slot Variants For Optical Modules
- Splice Tray Placement With Nylatches
Applications
- Pedestals, Customer Premises, Telephone Room
- Midspan Splice / Distribution Points
- Fiber-To-The-Home, FTTH
- Fiber-To-The-Tower, FTTT
| Parameter | Unit | Specification (UMP-1552) | Specification (UMP-1752) |
|---|---|---|---|
| MATERIAL | -- | 16 GA ALUMINUM | 2mm STAINLESS STEEL |
| DIMENSIONS | IN | 15 x 5.75 x 2.5 | 17 x 5.75 x 2.5 |
| DIMENSIONS | mm | 381 x 146.1 x 63.5 | 431.8 x 146.1 x 63.5 |
| OPERATING TEMPERATURE | °C | -40 ~ +85 | -40 ~ +85 |
| STORAGE TEMPERATURE | °C | -40 ~ +85 | -40 ~ +85 |
| Part Number | Description |
|---|---|
| PLO-UMP-1552 | 15-INCH UNIVERSAL MOUNTING PLATE, 2 LGX SLOT, PEDESTAL AND CPE |
| PLO-UMP-1752 | 17-INCH UNIVERSAL MOUNTING PLATE, 4 LGX SLOT, PEDESTAL AND CPE |
Pedestal Mounting Posts and Ground Stakes
Overview
The Plugin Optics offers several mounting posts and stakes for our 8-inch, 10-inch and 12-inch pedestals. Our 42-inch, 2 piece, Universal Pedestal Stake provides a versatile and rigid mounting place for your fiber optic pedestal equipment. With adjustment heights of 22” to 42,” standard 1” square hole spacing along the bottom and narrow mounting channel slots near the top this pedestal stake can be used in a multitude of difference pedestal applications. Our 33-inch mounting post offers a rigid mounting post for all of your mounting panel needs. The 42-inch ground stake offers a secure ground stable stake for applications that require deeper ground depth.
Features
- Universal Design Supports Many, Industry Standard, Mounting Plates, Panels, and Splicing Accessories
- PLO-US-42, 42-Inch, Two Piece Adjustable Mounting Stake & Post

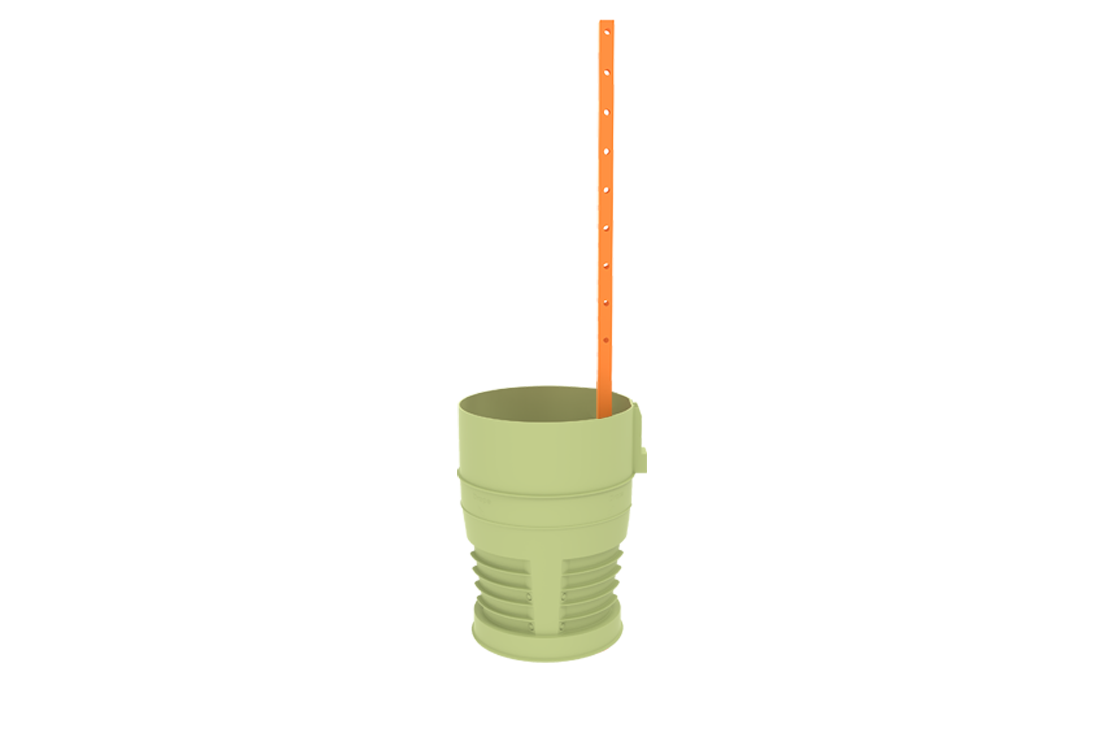

- PLO-MP-33, 33-Inch Mounting Post (Above Grade)

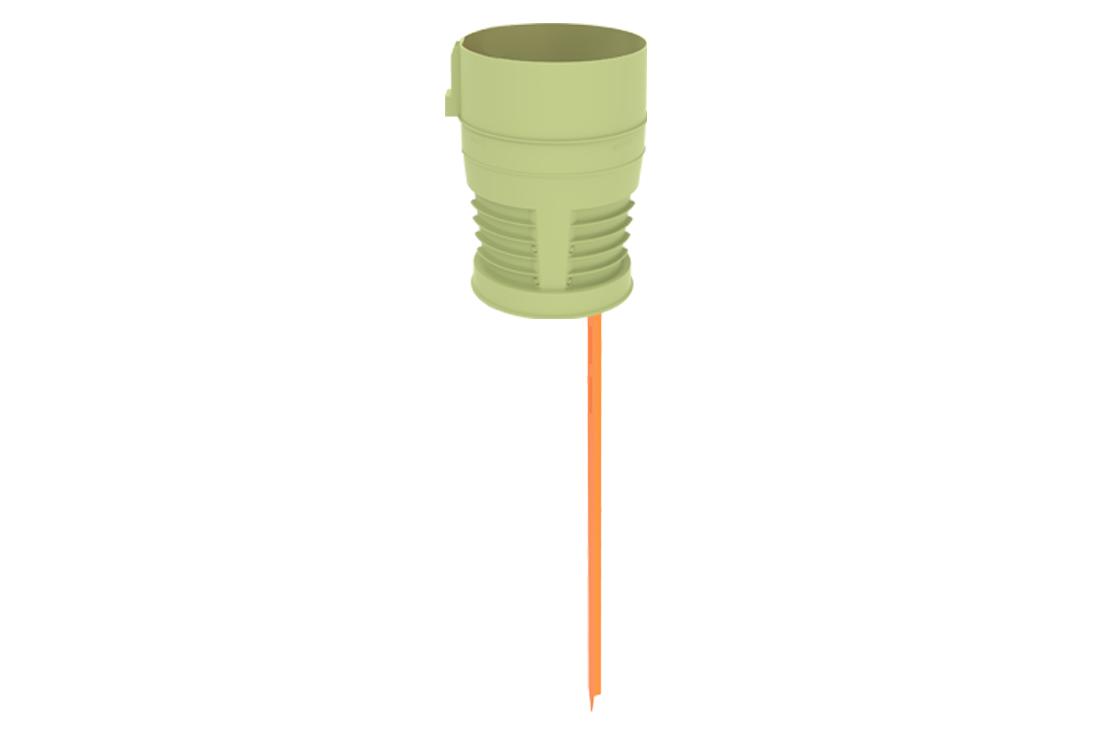

- PLO-GS-42, 42-Inch Ground Stake (Below Grade)
- For Use With 8-Inch, 10-Inch, and 12-Inch Pedestals
Applications
- Residential, Commercial, Industrial
- Midspan Splice Points
- Distribution Points
- Fiber-To-The-Home, FTTH
- Fiber-To-The-Tower, FTTT
| Parameter | Unit | Specification |
|---|---|---|
| DIMENSION: FULL STAKE (MAX) | in (mm) | 42 (1066.8) x 1.5 (38.1) x ¾ (19.1) |
| DIMENSION: STAKE BOTTOM | in (mm) | 25.25 (641.4) x 1.5 (38.1) x ¾ (19.1) |
| DIMENSION: STAKE TOP | in (mm) | 19 (482.6) x 1.5 (38.1) X ¾ (19.1) |
| MATERIAL | -- | 14GA STAINLESS STEEL |
| OPERATING TEMPERATURE | °C | -40 ~ +85 |
| STORAGE TEMPERATURE | °C | -40 ~ +85 |
| Part Number | Description |
|---|---|
| PLO-US-42 | PEDESTAL STAKE, TWO PIECE, ADJUSTABLE LENGTH, 22-INCH TO 42-INCH, UNIVERSAL |
| PLO-MP-33 | MOUNTING POST, 1 PIECE, 33-INCH, USED FOR BOTH 8-INCH & 10-INCH PEDESTALS |
| PLO-GS-42 | UNIVERSAL GROUND STAKE, 42-INCH, 1 PIECE |
Grounding Bracket
Overview
The UGB-300-L “Universal Grounding Bracket” provides an excellent, low-cost grounding and bonding solution. The plate has an integrated Lug that accommodates #14 – #2 AWG and three posts with corresponding washer nuts for flexible ground wire and eyelet terminations.
Features
- 14 Gauge Stainless Steel
- Aluminum-Tin Plated Lug For #14 – #2 Awg Termination
- 3 Post Ground Bar With 3/8 Washer Nuts
Applications
- Pedestal and Customer Premise
- FTTx, xWDM and Fiber Interconnect
- Fiber-To-The-Home, FTTH
- Fiber-To-The-Tower, FTTT
| Parameter | Unit | Specification |
|---|---|---|
| MATERIAL (BRACKET) | -- | 14 GA STAINLESS STEEL |
| MATERIAL (GRD LUG) | -- | TIN PLATED ALUMINUM |
| DIMENSIONS | in | 4 X 1 ½ X ¾ |
| DIMENSIONS | mm | 101.6 X 38.1.1 X 19.05 |
| OPERATING TEMPERATURE | °C | -40 ~ +85 |
| STORAGE TEMPERATURE | °C | -40 ~ +85 |
| Part Number | Description |
|---|---|
| PLO-UGB-300-L | Universal Grounding Bracket, Pedestal and CPE |
Fiber Splice Tray
Overview
The UTRAY-854 “Universal Fiber Splice Tray” is built to provide a low-cost deployment solution for many fiber splicing applications. The compact form factor of the UTRAY-854 can be easily attached to the UMP-1552 mounting panel using the installed Nylatch fasteners and can be stacked using the integrated attachment clips.
Features
- 12/24 Fiber Splice Tray, 8.75” X 4” X 5/16”
- Stackable With Integrated Clips
- Nylatch Mount In “UMP” Panel
- Cover, Splice Holders And Nylatch Fasteners Are Factory Installed
- Tray Kit Also Includes Splice Tubes (Q6), Felt Tape (Q1), Cable Ties (Q6)
Applications
- Pedestals, Customer Premise, Telephone Room
- Midspan Splice / Distribuon Points
- Fiber-To-The-Home, FTTH
- Fiber-To-The-Tower, FTTT
| Parameter | Unit | Specification |
|---|---|---|
| MATERIAL | -- | SPECIFICATION |
| DIMENSIONS | IN | ABS PLASTIC |
| DIMENSIONS | mm | 8.4 X 4 X .8 |
| OPERATING TEMPERATURE | °C | 215.9 X 101.6 X 20.3 |
| STORAGE TEMPERATURE | °C | -40 ~ +85 |
| Part Number | Description |
|---|---|
| PLO-UTRAY-854 | 12 FIBER SPLICE TRAY KIT |
2- Post Bracket Kit
Overview
The Adjustable 2-Post Pedestal Bracket Kit and the PLO-0RU-UMC-2LGX Magnet Mount adds LGX slot capacity to two post pedestals. The Universal Design allows you to center the Magnet Mount between the two posts while allowing for sufficient ingress cable routing within the pedestal.
Features
- Universal Design Supports Industry Mounting Stakes
- Kit Includes
- Qty 2, L Shaped Brackets
- Qty 4, Panhead Carriage Bolts, M6 x .5-Inch
- Qty 4, Panhead Carriage Bolts, M6 x 1-Inch
- Qty 8, Hex Bolts, M6
- Qty 8, Flat Washers, M6
- Adjustable 8-inch to 14-inch width
Applications
- Pedestals and Cabinets
| DESCRIPTION | UNITS | SPECIFICATION |
|---|---|---|
| HEIGHT | in (mm) | 2.6 (66) |
| WIDTH | in (mm) | 13 (330.2) |
| DEPTH | in (mm) | 1.6 (40.6) |
| MATERIAL | -- | .118 GALVANEAL STEEL |
| FINISH | -- | POWDER COAT |
| COLOR | -- | BLACK |
| OPERATING TEMPERATURE | °C | -40 ~ +85 |
| STORAGE TEMPERATURE | °C | -40 ~ +85 |
| PART NUMBER | DESCRIPTION |
|---|---|
| PLO-U-MMPED-KIT | ADJUSTABLE 2-POST PEDESTAL BRACKET KIT FOR MAG MOUNT |
| PLO-0RU-UMC-2LGX | UNIVERSAL MAGNET MOUNT, 0RU, 2 LGX SLOTS, WALL OR MAGNET MOUNTED |
| NOTE: PLUGIN OPTICS OFFERS A FULL LINE OF HARDWARE TO DEPLOY WITH UNIVERSAL DISTRIBUTION PEDESTALS. | |
1 Slot LGX Pedestal Bracket
Overview
The LGX pedestal bracket provides additional LGX slot capacity in pedestal and cabinet applications.
Features
- Universal Design Supports Many Mounting Stakes
- 1/4-Inch Mounting Holes, 1-Inch on Center
- Supports LGX Based Solutions
- CWDM & DWDM
- Bulkhead & Pigtailed Distribution Ports
- PLC Splitters
- Bracket Kit Includes Two, #10-24 x ½-Inch, Philips Pan Head Bolts, Flat Washers, and #10-24, Nylon Locking Nuts
Applications
- Pedestals and Cabinets
| DESCRIPTION | UNITS | SPECIFICATION |
|---|---|---|
| HEIGHT | in (mm) | 2.5 (63.5) |
| WIDTH | in (mm) | 6.29 (160) |
| DEPTH | in (mm) | .118 (3) |
| MATERIAL | -- | .118 GALVANEAL STEEL |
| FINISH | -- | POWDER COAT |
| COLOR | -- | BLACK |
| OPERATING TEMPERATURE | °C | -40 ~ +85 |
| STORAGE TEMPERATURE | °C | -40 ~ +85 |
| PART NUMBER | DESCRIPTION |
|---|---|
| PLO-LPB-1SLT | LGX PEDESTAL BRACKET, 1-SLOT, STAKE MOUNTING |
| NOTE: PLUGIN OPTICS OFFERS A FULL LINE OF HARDWARE TO DEPLOY WITH UNIVERSAL DISTRIBUTION PEDESTALS. | |
UBM to LGX Bracket
Overview
The Universal UBM to LGX Slot Bracket is used to mount the Universal Bulkhead Module (UBM) based splitters, taps and interconnect solutions into, industry standard, LGX based mounting locations.
Features
- Supports Single & Double Wide UBM Modules
- Industry Standard Nylatch Mounting
- Supports all UBM Based Solutions
- USBM Splitters
- USBM-T Splitter-Tap Modules
- UBM-T Tap Modules
- UBM-I Interconnect Modules
Applications
- Distribution Points
- Fiber-To-The-Home, FTTH
- Fiber-To-The-Tower, FTTT
- Fiber-To-MDU
| DESCRIPTION | UNITS | SPECIFICATION |
|---|---|---|
| HEIGHT | in (mm) | 1.14 (29) |
| WIDTH | in (mm) | 5.12 (130) |
| DEPTH | in (mm) | 3.7 (94) |
| MATERIAL | -- | 16 GAUGE STEEL |
| FINISH | -- | POWDER COAT |
| COLOR | -- | BLACK |
| OPERATING TEMPERATURE | °C | -40 ~ +85 |
| STORAGE TEMPERATURE | °C | -40 ~ +85 |
| PART NUMBER | DESCRIPTION |
|---|---|
| PLO-ULGX-UBM-01 | UNIVERSAL LGX BRACKET, 1 UBM MODULE IN LGX SLOT |
| NOTE: PLUGIN OPTICS OFFERS A FULL LINE OF HARDWARE TO DEPLOY WITH UNIVERSAL DISTRIBUTION PEDESTALS. | |
